Description

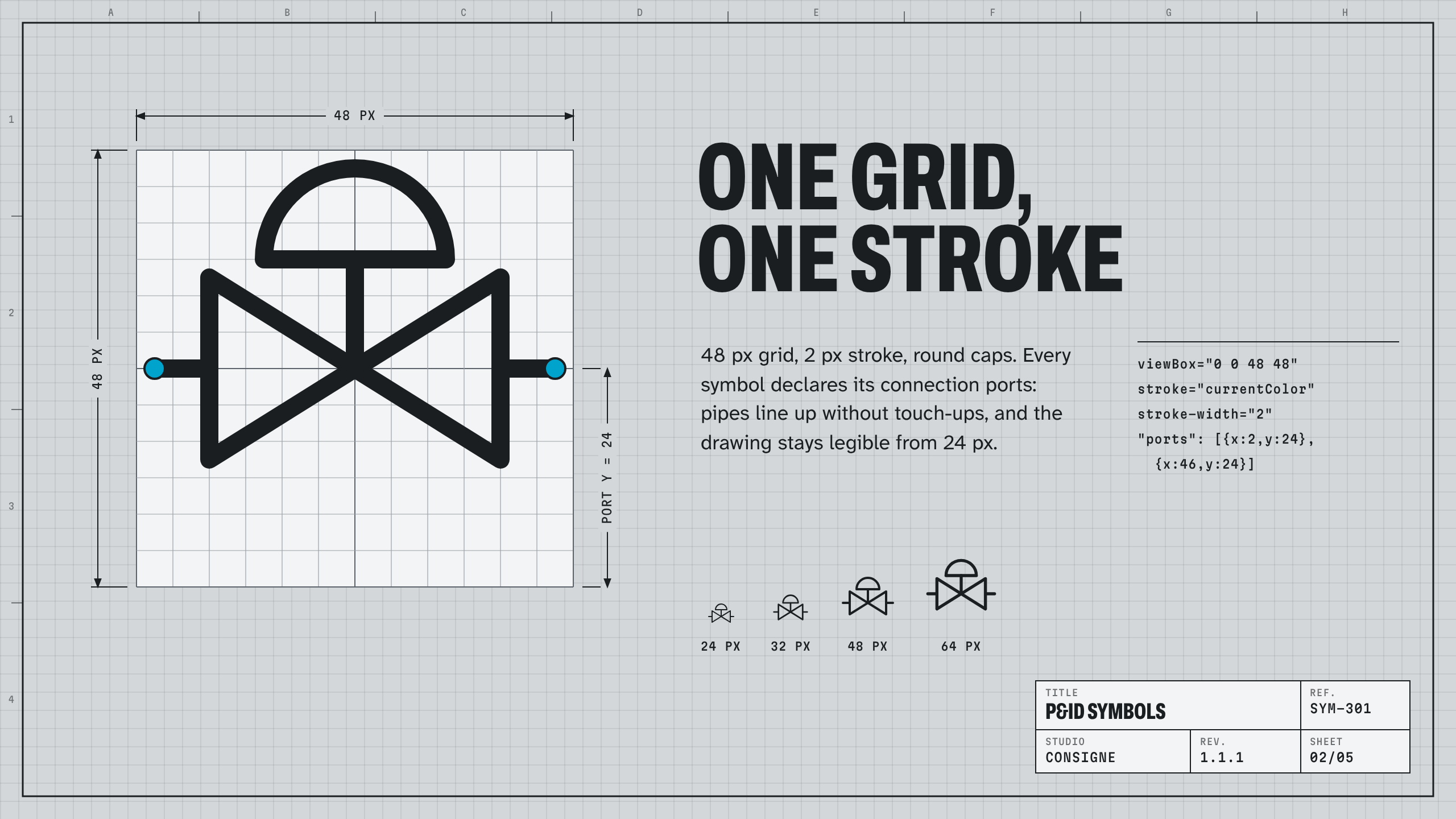

A complete set of symbols for process diagrams (P&ID) and supervision screens, drawn on a single grid: 48 × 48, 2 px stroke, round caps, inherited colour.
What you get

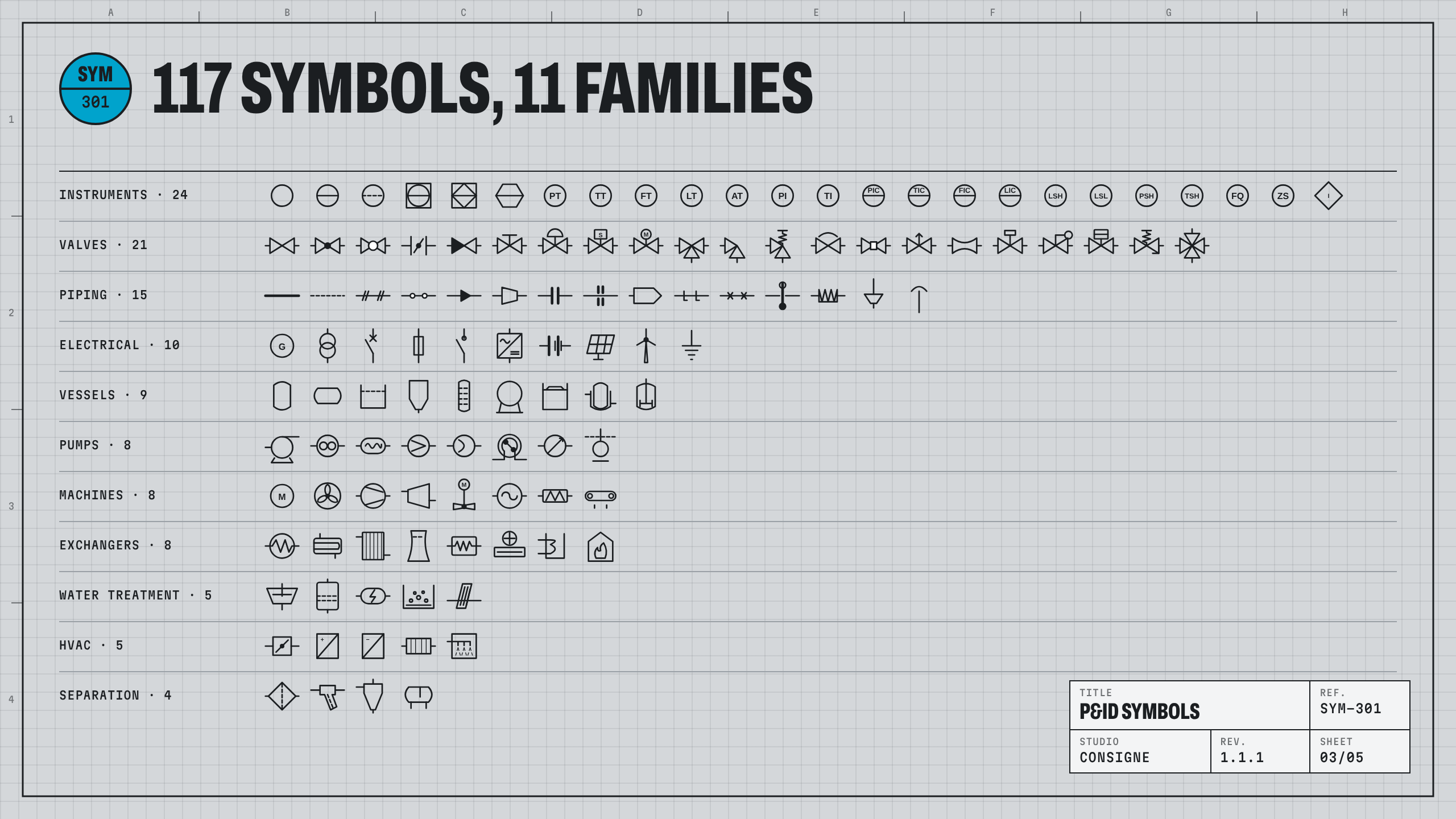

- 117 symbols in 11 families: 21 valves, 8 pumps, 8 rotating machines, 9 vessels and tanks, 8 heat exchangers, 4 separation, 5 water treatment, 5 HVAC, 10 electrical, 24 instruments (including PIC, TIC, FIC, LIC control loops), 15 piping and lines.
- Formats: 117 SVGs, SVG sprite, 468 transparent PNGs (64 and 256 px, black and white), draw.io / diagrams.net library with English names, JSON metadata (English and French labels, connection points), JavaScript module.
- For web HMIs: state classes (running, open, closed, fault, warning, maintenance, unknown, disabled), rotor spin when running, animated line flow,
prefers-reduced-motionrespected. - HTML symbol sheet with English and French search and click-to-copy SVG.
- 479 automated tests on every symbol (valid SVG, grid, accessible title, no hard-coded colour, English label).
What the pack does not do
- Shapes follow the usual conventions (ISA-5.1, ISO 10628), with no certification or affiliation.
- No Visio stencil or Figma library in this version (SVGs and PNGs drag and drop into both).
Licence
Commercial licence: unlimited use in your projects and your clients' projects, including in delivered documents and software; reselling the pack as such is not allowed.
Transparency
Symbols generated by code written with the help of an AI tool, visually reviewed and checked by tests.
FAQ (on the listing)
- Can I use them in Visio or PowerPoint? Yes, as SVG or PNG (drag and drop).
- Dark backgrounds? Yes: inherited colour in SVG, white PNGs included.
- Refund? Yes, within 14 days, if the pack does not match the description.
- Support? Write to support@consignestudio.fr.
